Plywood shipping / storage box for one pillow type water tank, water bladder
1 - 5
To be negotiated
Collapsible pillow tanks is the most economical and the most simply storage way for the potable drinking water in desert, industrial, commercial, and residential areas. DOOWIN collapsible tanks for drinking water are constructed from the top grade fabric material, which is certificated comply with NSF standard. Collapsible potable water tanks are low profile and can be customized to meet the space requirement. These drinking water collapsible tanks can be fold easily for storage and shipment.
The collapsible potable water pillow tanks are extremely versatile and can be unrolled and used on any area of flat ground that has been cleared of debris, they require no special tools for installation, and are easily emptied and packed for storage when not in use.
PVC Pillow Storage Drinking Water Tank Construction

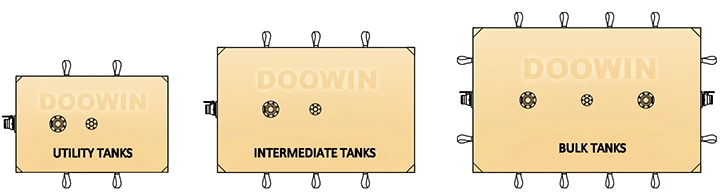

Please refer below general drawing for the small, middle and large potable water pillow tanks.

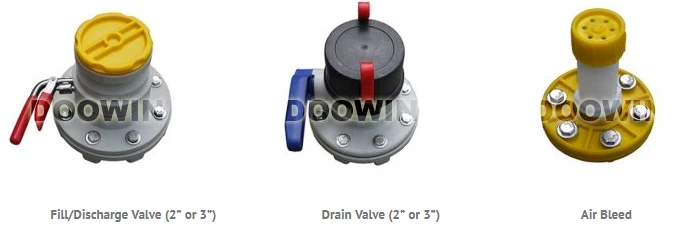

Inlet Fittings: The standard filling fitting is 2”, 3” and 4” high quality PP flange with cam-lock with one safety cap (refer below picture). The other material filling port and camlock are available upon request. We can do aluminum or stainless steel flange and cam-lock, with stainless steel or brass ball valves.
Outlet Fittings: The standard filling fitting is 2”, 3” and 4” high quality PP flange with cam-lock with one safety cap (refer below picture). The other material filling port and camlock are available upon request. We can do aluminum or stainless steel flange and cam-lock, with stainless steel or brass ball valves.
Optional: Ground sheet can protect your pillow tanks. It will be supplied upon request.

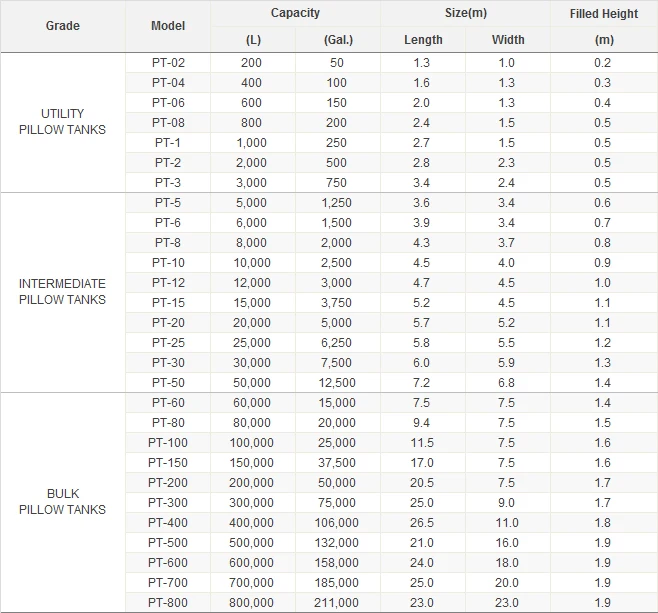

PVC Pillow Storage Drinking Water Tank Specification
DOOWIN potable water pillow bladder tanks are from 200L to 800,000L. The below specification is the common size. We also make other size and capacity pillow type bladder tanks upon request.
Advantages and Features of PVC Pillow Storage Drinking Water Tank
The biggest advantages of drinking water bladders are comply with NSF/ANSI 61, KTW, ACS potable water standards, no taste or odor. This potable drinking water bladder.
Fabric made in Germany
NSF approved fabric material
Top notch UV resistance
Excellent abrasion properties
Light weight, High strength
Easy to storage and shipment
Easy to setup and operate
Various size and customized size
Customized size available
Various filling/discharge fittings
Easy to step up and operate
PVC Pillow Storage Drinking Water Tank Material
Drinking water is our most vital commodity. We have to ensure the quality of the drinking water that stored in our pillow tanks cannot be affected by contact with other material.
DOOWIN use the top grade fabric for the drinking water storage tank made in Germany. These fabric material are certificated with the American NSF/ANSI 61, KTW, ACS standards. So you can be assured that our portable water tank does not pose any risk of contamination to drinking water.
PVC Pillow Storage Drinking Water Tank Application
We can make the collapsible portable pillow tanks for below application and more. In one word, if you want to store drinking water, choose DOOWIN potable water tanks.
